chore: switch to an XcodeGen project file #32
Conversation
ThomasK33
force-pushed
the
01-24-chore_switch_to_an_xcodegen_project_file
branch
10 times, most recently
from
8f5f751 to
3b3eaf9
Compare
There was a problem hiding this comment.
For some reason the runtime search paths for the frameworks has changed, despite the config looking mostly the same:
When starting the network extension I'm getting:
ASI found [dyld] (sensitive) 'Library not loaded: /Library/Frameworks/VPNLib.framework/Versions/A/VPNLib
Referenced from: <306B8001-A2DD-3B40-8152-B2257E804958> /Library/SystemExtensions/0EB23306-84D3-465D-9069-4140FD750438/com.coder.Coder-Desktop.VPN.systemextension/Contents/MacOS/com.coder.Coder-Desktop.VPN
Reason: tried: '/Library/Frameworks/VPNLib.framework/Versions/A/VPNLib' (no such file), '/System/Volumes/Preboot/Cryptexes/OS/Library/Frameworks/VPNLib.framework/Versions/A/VPNLib' (no such file), '/Library/Frameworks/VPNLib.framework/Versions/A/VPNLib' (no such file)'
Previously, the build folder in XCode was included in the list of directories it would look for the library, not just the system stores I know this because the tried list would include it when I had the same error before I embedded them, here's that error message:
ASI found [dyld] (sensitive) 'Library not loaded: @rpath/VPNLib.framework/Versions/A/VPNLib
Referenced from: <3CE45B2E-A079-384F-88F8-1CE9C94C7020> /Library/SystemExtensions/A55BDC5F-9B8D-4AEA-AFC7-B5D63AFADFD8/com.coder.Coder-Desktop.VPN.systemextension/Contents/MacOS/com.coder.Coder-Desktop.VPN
Reason: tried: '/Users/ethan/Library/Developer/Xcode/DerivedData/Coder_Desktop-ffdgfuvlnrlswxdjjgbkxtwmhuwc/Build/Products/Debug/PackageFrameworks/VPNLib.framework/Versions/A/VPNLib' (no such file), '/System/Volumes/Preboot/Cryptexes/OS/Users/ethan/Library/Developer/Xcode/DerivedData/Coder_Desktop-ffdgfuvlnrlswxdjjgbkxtwmhuwc/Build/Products/Debug/PackageFrameworks/VPNLib.framework/Versions/A/VPNLib' (no such file), '/Library/SystemExtensions/A55BDC5F-9B8D-4AEA-AFC7-B5D63AFADFD8/com.coder.Coder-Desktop.VPN.systemextension/Contents/Frameworks/VPNLib.framework/Versions/A/VPNLib' (no such file), '/Library/SystemExtensions/Frameworks/VPNLib.framework/Versions/A/VPNLib' (no such file), '/Users/ethan/Library/Devel<…>'
But curiously:

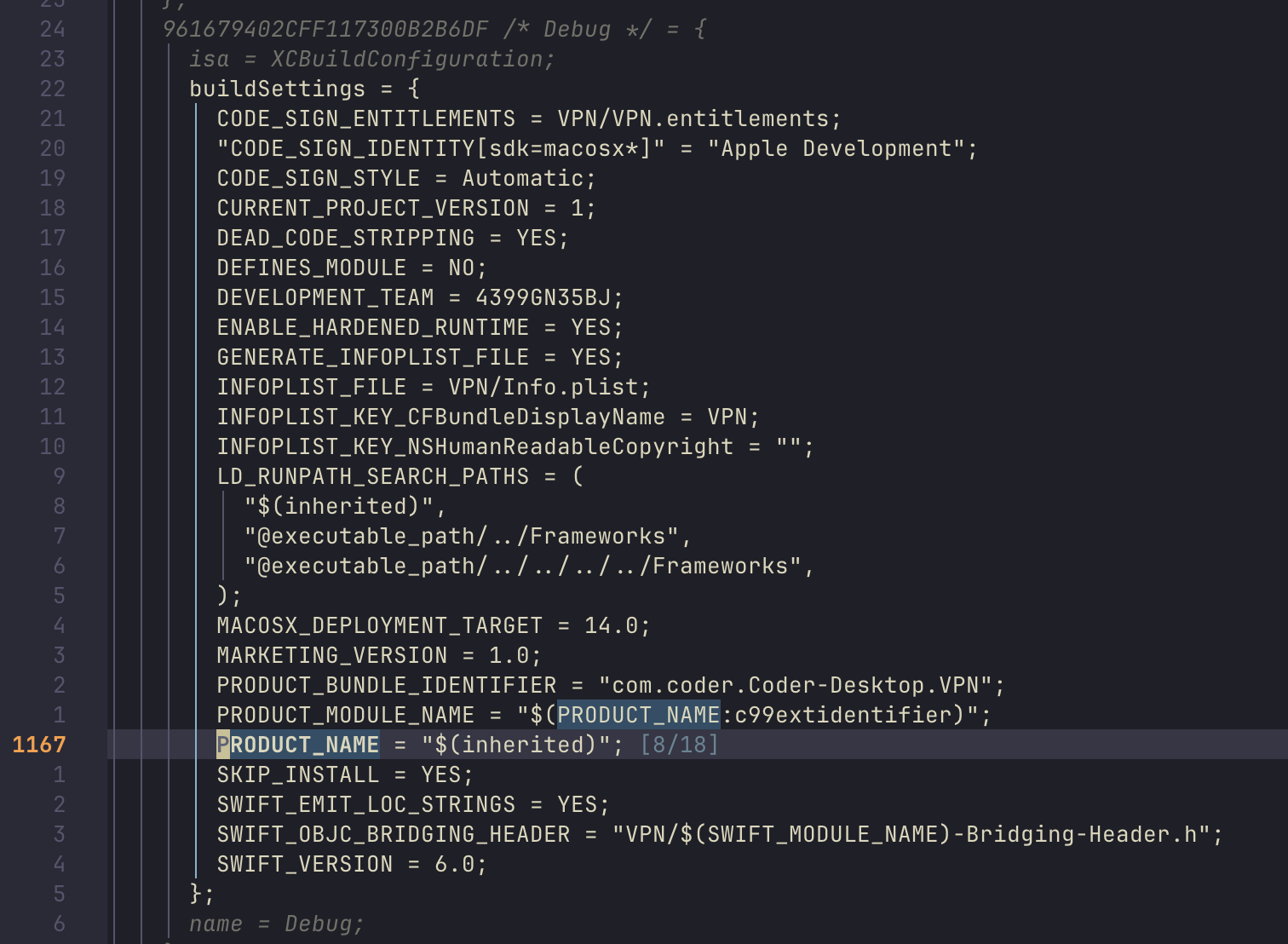

This is on main:
and this is on this branch:
Perhaps it could be worth scrapping the dynamic frameworks altogether, and just including the contents of VPNLib and CoderSDK as compile targets for the app and NE, i.e. this setting:
WDYT?
Coder Desktop/project.yml
Outdated
| base: | ||
| INFOPLIST_FILE: VPN/Info.plist | ||
| PRODUCT_MODULE_NAME: "$(PRODUCT_NAME:c99extidentifier)" | ||
| PRODUCT_NAME: "$(inherited)" |
There was a problem hiding this comment.
I had to set PRODUCT_NAME to $(PRODUCT_BUNDLE_IDENTIFIER for the app to get the OS to prompt me to install the NE.
There was a problem hiding this comment.
Interesting. Was that already committed to the main branch?
When looking at the pbxproj file from main, it's set to inherit, so I carried it over as is.
There was a problem hiding this comment.
I believe it's cause you have the base setting for PRODUCT_NAME set to $(TARGET_NAME):
PRODUCT_NAME: "$(TARGET_NAME)"
Whereas on main the base value for PRODUCT_NAME is currently empty.
Setting that base value (changing the setting when the project is selected in XCode) causes it to inherit from that.
There was a problem hiding this comment.
Does the PRODUCT_NAME: "$(PRODUCT_BUNDLE_IDENTIFIER)" only apply to this system extension, or should I remove that default base value?
There was a problem hiding this comment.
yeah only the system extension is $(inherited), everything else is $(TARGET_NAME) (with ..:c99extidentifier for the frameworks)
ThomasK33
force-pushed
the
01-24-chore_switch_to_an_xcodegen_project_file
branch
4 times, most recently
from
ea316ce to
81bc611
Compare
ThomasK33
force-pushed
the
01-24-chore_switch_to_an_xcodegen_project_file
branch
from
81bc611 to
54eb681
Compare
Change-Id: I753a7652cdc730157ae7f8bc036338bae5e6b54b Signed-off-by: Thomas Kosiewski <[email protected]>
ThomasK33
force-pushed
the
01-24-chore_switch_to_an_xcodegen_project_file
branch
from
54eb681 to
4a91b6d
Compare
3 participants
This PR transitions the project from a manually maintained .xcodeproj file to an XcodeGen-managed project configuration.
It introduces a streamlined development workflow using XcodeGen to generate project files dynamically and includes necessary updates to documentation, .gitignore, and CI configuration.
Change-Id: I753a7652cdc730157ae7f8bc036338bae5e6b54b
Signed-off-by: Thomas Kosiewski [email protected]
